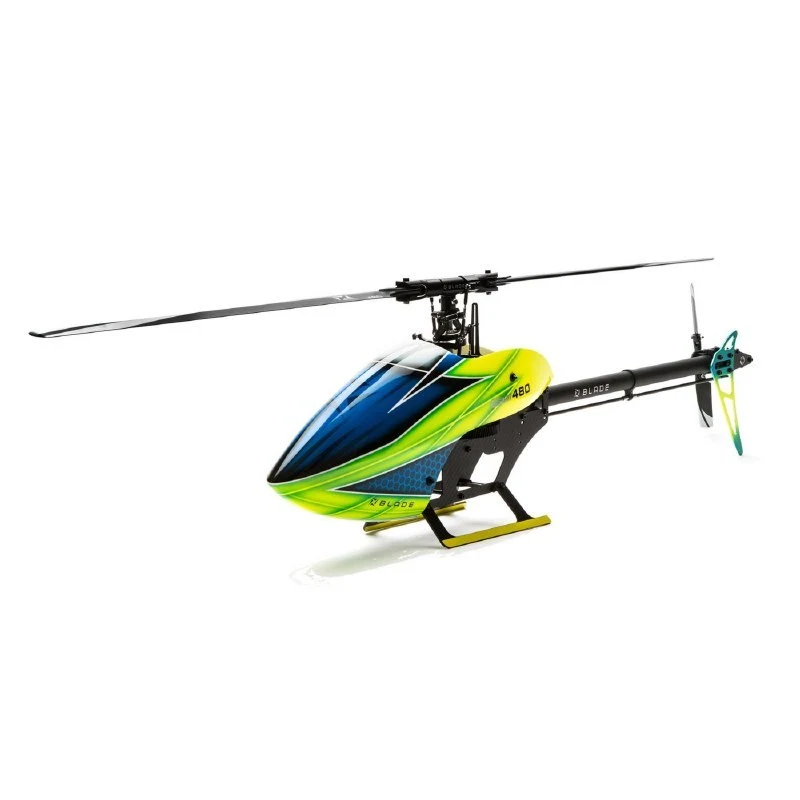

Blade Blade Fusion 480 Smart Super Combo Kit

Fusion 480 Smart Super Combo Kit
Built on years of engineering and development knowledge, the Blade Fusion 480 helicopter packs all the high-end features into a rugged and durable airframe ready to rip up the skies.

Overview

Fusion 480 Helicopter Kit
Key Features
All metal and carbon fiber construction
2mm carbon fiber frame, 3mm carbon fiber landing gear, 2.5mm tail box/fin
Efficient helical main gear paired with a steel pinion to reduce noise
Oversized 25mm tail boom eliminating the need for boom supports
6mm wide belt-driven tail with adjustable belt tension
5mm high-strength steel tail shaft paired with metal bell crank, hub and grips
Full carbon fiber and aluminum tail box with large aluminum pulley
5mm carbon fiber tail pushrod for precise tail control
High-strength steel 10mm main shaft and 8mm spindle
Standard size servos for cyclic and tail
Hidden tail servo for a sleek look
Capable of 3000 RPM head speed for aggressive flight performance
Save money and get everything needed to complete your Fusion 480 with this Super Combo!
Practice flying this aircraft in the RealFlight® simulator!
Needed to Complete
Spektrum™ DX6 6-Channel DSMX Transmitter
Spektrum 22.2V 4000mAh 6S 50C Smart LiPo Battery, IC5

What’s in the box?
(1) Fusion 480 Helicopter Kit
(1) 4320-1300Kv Brushless Motor
(1) Avian 100 amp Smart ESC
(3) H6050 High-Torque Mid-Speed Heli Cyclic Servo
(1) H6060 Mid-Torque Ultra-Speed Heli Tail Servo
(1) FC6250HX Flight Controller
(1) 4651T SRXL2 Serial Reciever
(1) User Manual

Overview
Built on years of engineering and development knowledge, the Blade® Fusion™ 480 helicopter packs all the high-end features into a rugged and durable airframe ready to rip up the skies. This powerhouse features lightweight carbon fiber and anodized aluminum construction presenting exceptional rigidity and durability. The optimized control system geometry offers the most efficient and responsive control. The quiet helical main gear is ready to be driven by a 40-43mm brushless motor bringing high power and torque. A belt-driven tail assembly is housed in construction utilizing both carbon fiber and aluminum to ensure precision performance every flight. For advanced-level 3D pilots, the Fusion 480 delivers an aggressive heli leaving the others in its dust cloud.

Specifications

Approximate Flight Time
~5 mins
Battery
Sold Separately
Canopy/Body Material
Fiberglass
Completion Level
Kit
Flying Weight
251-2000g, Varies depending on equipment selected
Height
302mm [11.9in] Length
980mm [38.6in] Main Blade Material
Carbon Fiber
Main Frame Material
Carbon Fiber
Main Motor Type
Brushless
Main Rotor Blade Length
480mm [18.9in] Main Rotor Diameter
1095mm [43.1in] Main Rotor Head Type
Collective Pitch Flybarless
Pinion Size
12 tooth
Receiver
Included
Skill Level
Level 3
Speed Control
Included
Swashplate Type
120 Degree CCPM
Tail Blade Material
Carbon Fiber
Tail Drive
Belt Drive
Tail Ratio
4.16667
Tail Rotor Blade Length
85mm [3.3in] Tail Rotor Diameter
23
