Blade Blade Fusion 480 KIT

Overview

Features
•All metal and carbon fiber construction.
•2mm carbon fiber frame, 3mm carbon fiber landing gear, 2.5mm tail box/fin.
•Efficient helical main gear paired with a steel pinion to reduce noise
•Oversized 25mm tail boom eliminating the need for boom supports
•6mm wide belt-driven tail with adjustable belt tension
•5mm high-strength steel tail shaft paired with metal bell crank, hub and grips
•Full carbon fiber and aluminum tail box with large aluminum pulley
•5mm carbon fiber tail pushrod for precise tail control
•High-strength steel 10mm main shaft and 8mm spindle
•Standard size servos for cyclic and tail
•Hidden tail servo for a sleek look
•Capable of 3000 RPM head speed for aggressive flight performance
•Accepts 6s 3700-5000 mAh LiPos
•Accepts 480mm main blades and 85mm tail blades
•Accepts up to 4320-1300Kv motor

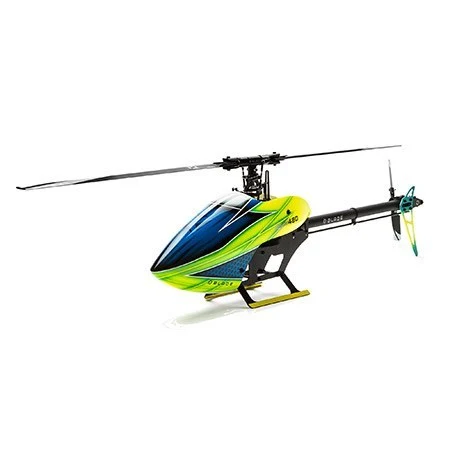

Built on years of engineering and development knowledge, the Blade® Fusion™ 480 helicopter packs all the high-end features into a rugged and durable airframe ready to rip up the skies. This powerhouse features lightweight carbon fiber and anodized aluminum construction presenting exceptional rigidity and durability. The optimized control system geometry offers the most efficient and responsive control. The quiet helical main gear is ready to be driven by a 40-43mm brushless motor bringing high power and torque. A belt-driven tail assembly is housed in construction utilizing both carbon fiber and aluminum to ensure precision performance every flight. For advanced-level 3D pilots, the Fusion 480 delivers an aggressive heli leaving the others in its dust cloud.

Tech Notes

You will need…
Brushless Motor 4319-1300kV
Spektrum™ Hi-Torque Cyclic Servo
Spektrum™ Hi-Speed Tailrotor Servo
E-flite® 4400mAh 6S 22.2V 30C LiPo, 10AWG: EC5
Castle Creations Talon 90-Amp 25V BL ESC W/20amp BEC
Spektrum™ DSMX® Flybarless Control System
Spektrum™ DSMX Remote Receiver
E-flite® EC5 Device Connector

Specifications

Type: Collective Pitch Flybarless
Main Rotor Diameter: 1095mm [43.1in] Tail Rotor Diameter: 232mm [9.1in] Length: 980mm [38.6in] Main Gear Ratio: 9.33
Tail Ratio: 4.16667
Kit/ARF/RTF: ARF
Rotor Blade Length: 480mm [18.9in] Experience Level: Advanced
Recommended Environment: Outdoor
Assembly Time: Less than 1 Hour
Is Assembly Required: Yes
